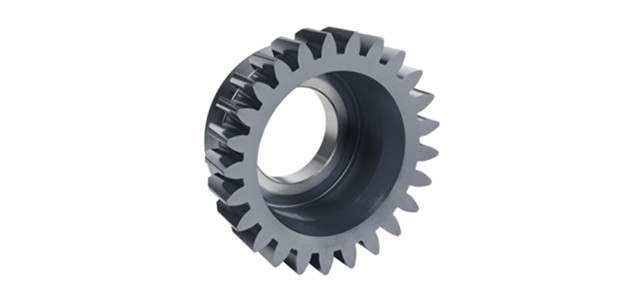

Hub-type shaper cutter with DIN 3972/II

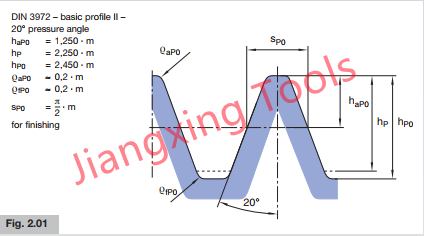

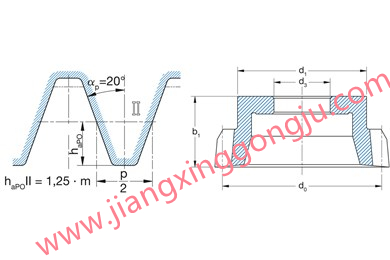

Tooth profile to DIN3972-2 standard
Module: m1-m6
Number of teeth: Z16-76
Pressure angle: 20°
Bore: 20mm, 31.743mm, 44.443mm
Please contact us for more details on module and dp hub-type gear shaper cutter on our website.
