Pre-cutting disc-type gear shaper cutter with DIN 3972/III
2021-10-18 11:51:13
jiangxingTools
3605

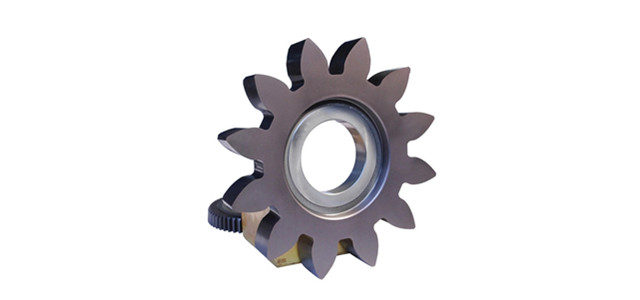

Pre-cutting disc-type gear shaper cutter with DIN 3972/III

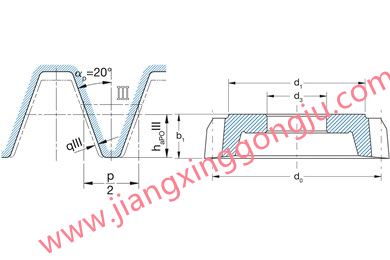

Tooth profile is according to DIN3972-3 standard
Module: m1-m6
Number of teeth: Z20-124
Pressure angle: 20°
Bore: 44.443mm
The standard gear shaping tools are manufactured from HSS M35, ASP2052 / S390 material with an Alcrona Pro coating. Here you will find the available models in the category disc-type shaper cutters DIN 3972/III. The stock shaper tools are available within a short space of time, and include a measurement.
