Deep Counterbore Type Shaper Cutters with GB 6081
2023-04-09 08:35:52
jiangxingTools
2241

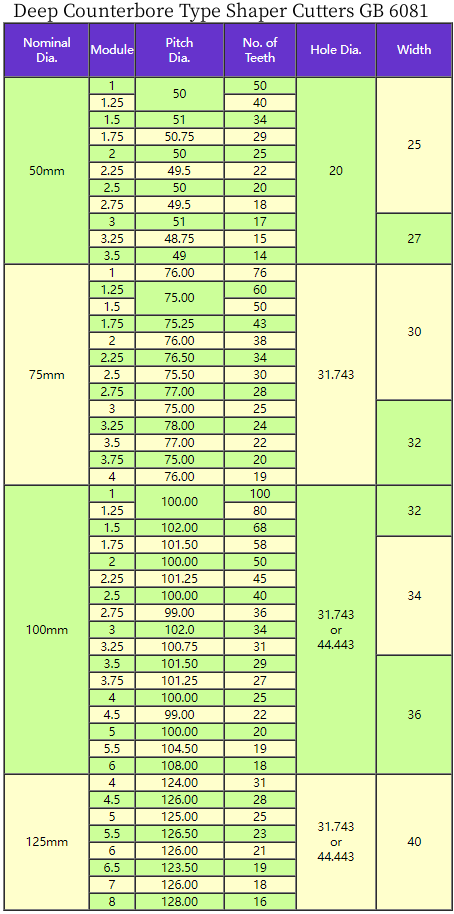

Deep Counterbore Type Shaper Cutters with GB 6081
Module range: m1-m8, diametral pitch: Dp 3-24
these shaper cutters are 20° PA, non-topping finishing cutter for spur gears.
tooth profile can be done with standard GB 6082, DIN 1829, JIS B 4356 and BS 5246
Standard geat shaping tools with Bore dia. is 20mm, 31.743mm, 44.443mm
