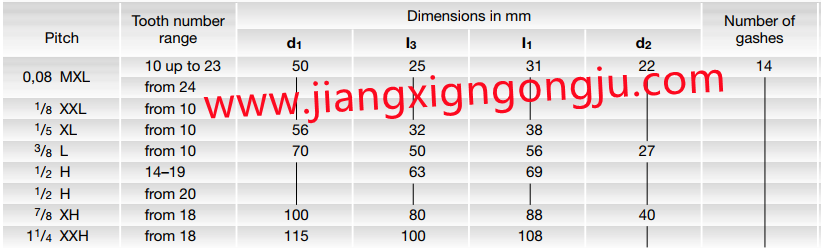

Hobs for timing belt pulleys to DIN/ISO 5294
hobs for timing belt pulleys with involute flanks to DIN/ISo 5294
topping ctter
quality grade A to DIN3968
single start right-handed
with keyway
Gear hobs for timing belt pulleys with straight flanks to DIN/ISO 5294 on request. Our range also includes hobs for timing belt pulleys with special profiles.
