HSS Fine Pitch Gear Hob Cutter with DIN 58412 Standard
2021-10-23 11:39:05
jiangxingTools
4496
HSS Fine Pitch Gear Hob Cutter with DIN 58412 Standard

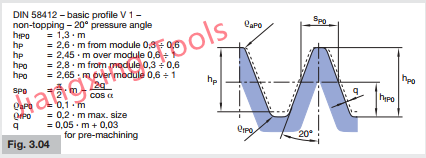

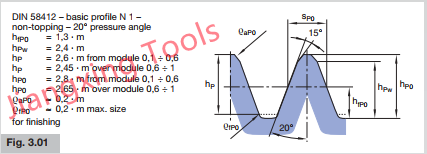

DIN 58412 N1, U1,V1 for gears with basic cutter profile to DIN 58400

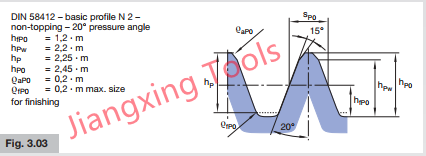

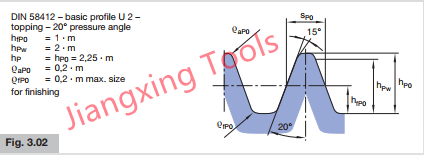

DIN 58412 N2, U2, V2 for gears with basic cutter profile to DIN 867
Please contact us for more details on standard gear hob with small module m0.2-m1.0.
